Prof.Dr.H.V.Klapdor-Kleingrothaus

Teilchenphysik ohne Beschleuniger (Non Accelerator Particle Physics)

Experimental and theoretical research in the areas of
Double Beta Decay, Dark Matter Searches and Physics beyond the Standard Model


GENIUS-TF: A Test Facility for the GENIUS-Project

GENIUS-TF-II-III

The first SIX naked high-purity Germanium detectors were installed successfully in liquid nitrogen in the GENIUS-Test-Facility in the GRAN SASSO Underground Laboratory on November 18, 2004. This is the first time ever that this novel technique aiming at extreme background reduction in search for rare decays is going to be tested underground. First operational parameters are presented.

NEW more successful team during installation of the detectors, on March 2005, GRAN SASSO, ITALY.
Left figure: From the right to the left: Irina Krivosheina, Sergei Karpov, Herbert Strecker. Hans V. Klapdor-Kleingrothaus (second from the right, Spokesman of the Heidelberg-Moscow experiment and also speaker of this collaboration), together with his colleagues - Sergey Karpov (right), Herbert Strecker (on front from the left) and Theo Apfel.

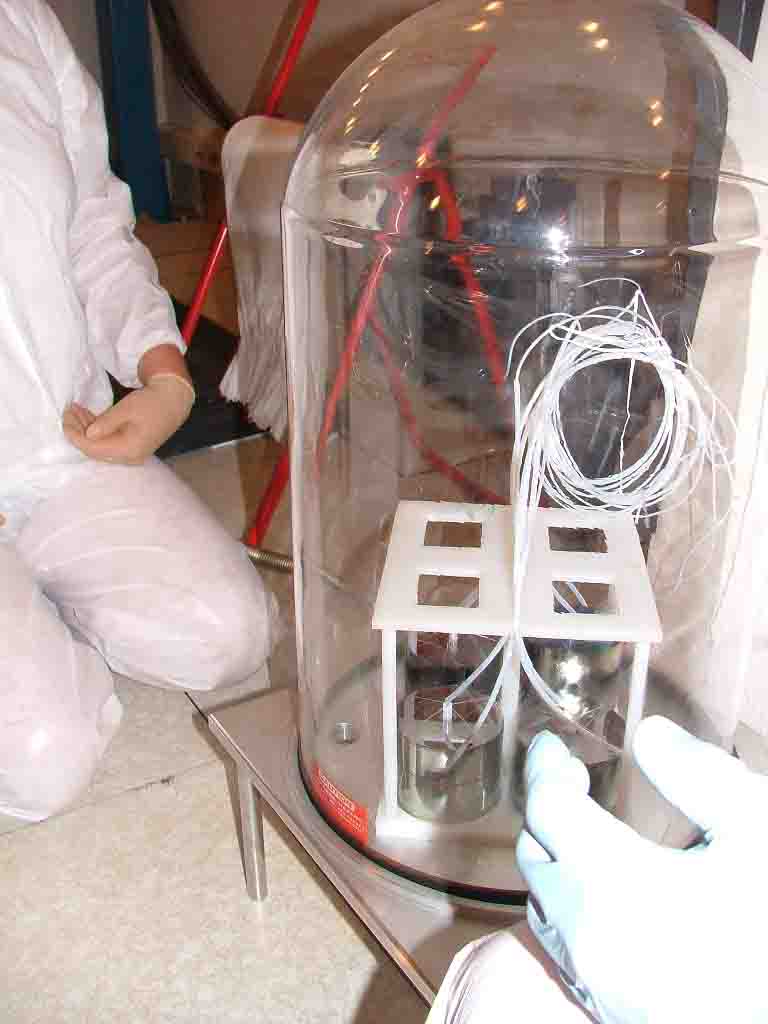

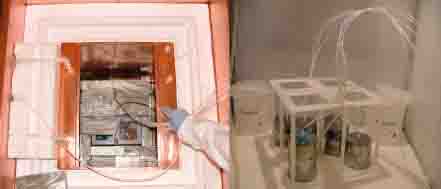

The first contacted six naked detectors in the low-level holder in which they are put into the shielded liquid nitrogen container of GENIUS-TFII-III.

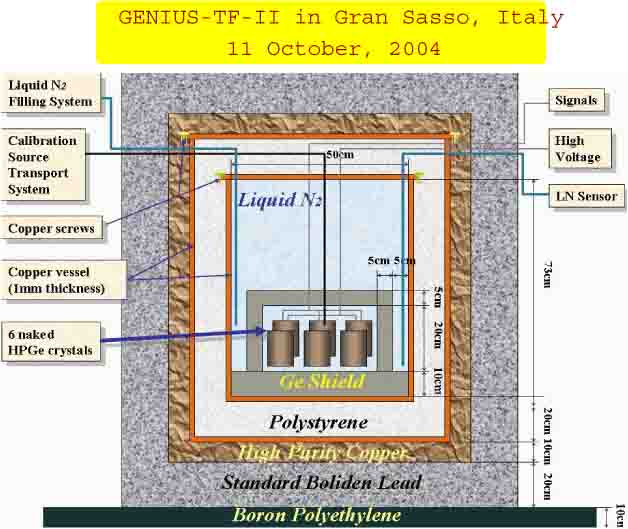

Cross section of the setup (GENIUS-TF-II-III).

GENIUS-TF is the only setup with naked Ge detectors worldwide running underground and over a longer time period. It has lead to important insight into the conditions of technical operation of naked Ge detectors in liquid nitrogen. The relatively large background from 222Ra diffusion is a problem unsolved up to now. The main problem realized, is, however, the increase of leakage current after long running of the detectors, caused by increasing surface impurity of the crystals. This led to serious restrictions of the high voltages applicable and finally to destruction of the detectors. The information GENIUS-TF delivered after almost three years of operation on the possibility of long-term operation of such experiments, may cast some doubts on the possibility of such experiments on larger scale in general.

For more information, please look into articles:

I.V. Krivosheina and H.V. Klapdor-Kleingrothaus
"Dreams and Reality of Using Naked Ge Detectors in Liquid Nitrogen, Status (Long-Term Stability) of GENIUS-TF"

in Proc. of DARK 2007, 6th International Heidelberg Conference On Dark Matter In Astro And Particle Physics, eds. H.V. Klapdor-Kleingrothaus and G. Lewis, Wold Scientific (2008) pp. 87-94.

H.V. Klapdor-Kleingrothaus and I.V. Krivosheina
"Status of GENIUS-TF-II and TF-III: The long-term stability of naked detectors in liquid nitrogen"
Nucl. Instr. Meth. A 566 (2006) 472-476

H.V. Klapdor-Kleingrothaus, I. V. Krivosheina
"Lessons after 3 years of running GENIUS-TF in Gran Sasso" ,
 Phys. Scr. T127 (2006) 52

H.V. Klapdor-Kleingrothaus and I. V. Krivosheina
"The GENIUS-Test-Facility and the HDMS detector in Gran Sasso"
Nucl. Phys. Proc. Suppl. 145 (2005) pp. 237-241
Edinburgh 2004, The identification of dark matter Proc. pp.339-347
Conca Specchiulla 2004, Neutrino oscillation proc., pp. 237-241

H.V. Klapdor-Kleingrothaus, C. Tomei, I.V. Krivosheina et al.,
The GENIUS-test-facility: First results on background from Rn-222 daughters
Nucl. Instr. Meth. A 530 (2004) 410-418

C. Tomei, A. Dietz, I. Krivosheina and H.V. Klapdor-Kleingrothaus
"Searching for the Annual Modulation of Dark Matter Signal with the GENIUS-TF Experiment" , hep-ph/ 0306257,
Nucl. Instrum. Meth. A 508, Issue 3 (2003) 343 - 352

T. Kihm, V.F. Bobrakov, H.V. Klapdor-Kleingrothaus
"A digital multi-channel spectroscopy system with 100 MHz flash ADC module for the GENIUS-TF and GENIUS projects" , hep-ph/0302236,
Nucl. Instrum. Meth. A 498 (2002) 334-339

H.V. Klapdor-Kleingrothaus
"Search for Dark Matter by GENIUS-TF and GENIUS"
hep-ph/0206250, Nucl. Phys. Proc. Suppl. 110 (2002) 58 - 60

H.V. Klapdor-Kleingrothaus, L. Baudis, A. Dietz, G. Heusser, B. Majorovits, H. Strecker, "GENIUS-TF: A TEST FACILITY FOR THE GENIUS PROJECT" hep-ex/0012022,
Nucl. Instrum. Meth. A 481 (2002) 149-159

H.V. Klapdor-Kleingrothaus, L. Baudis, A. Dietz, G. Heusser, I. Krivosheina, B. Majorovits, H. Strecker , H. Tu, S.T. Belyaev, V.I. Lebedev and coworkers "GENIUS-TF: A TEST FACILITY for the GENIUS-Project", MPI - REPORT (2000)

GENIUS-TF-I
GENIUS-TF-III

Please ask for the GENIUS proposal. We would be happy to send you a hardcopy.


I.V. Krivosheina
Last Modification: 26.08.2009 Created: 20/10/2000
